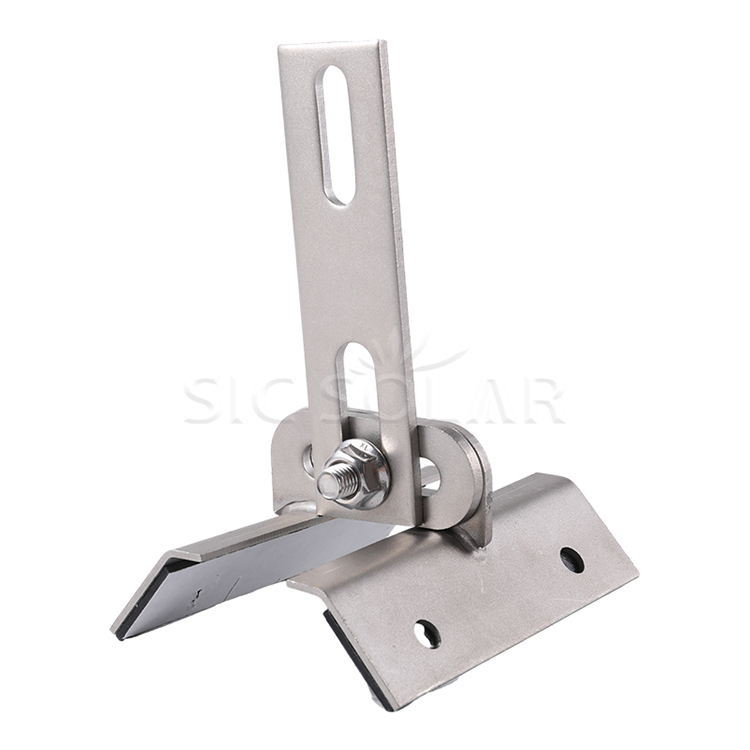

Adjustable Trapezoidal Tin Roof Solar Panel Clamp

Adjustable Trapezoidal Tin Roof Solar Panel Clamp is a versatile mounting solution designed for both trapezoidal and corrugated metal roofs. Its adjustable design can accommodate different roof profiles, ensuring that the solar panel is securely fixed.

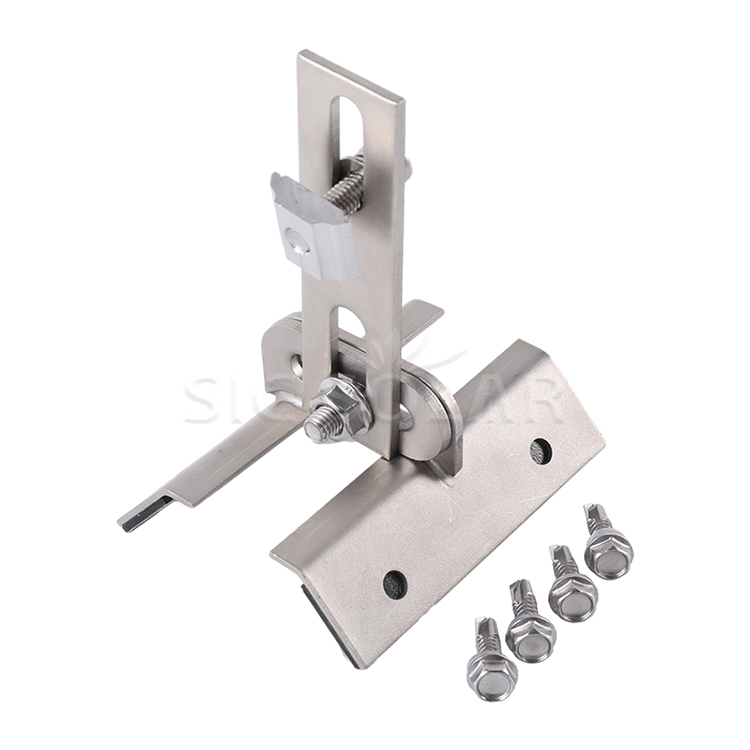

Components

Parameter

Benefits of Adjustable Trapezoidal Solar Clamps

✅ Leak-proof Design - Uses EPDM strips and pre-drilled fastening method.

✅ Adaptable Fit - Appropriate for many shapes of trapezoidal and wavy metal roofs.

✅ Fast and Simple Setup - Ready parts make setting up quick and easy.

✅ Tough Load Strength - Guarantees high wind and snow pile stability.

✅ Rust Proof Materials - Good aluminum and steel help long life durability.

Installation Process

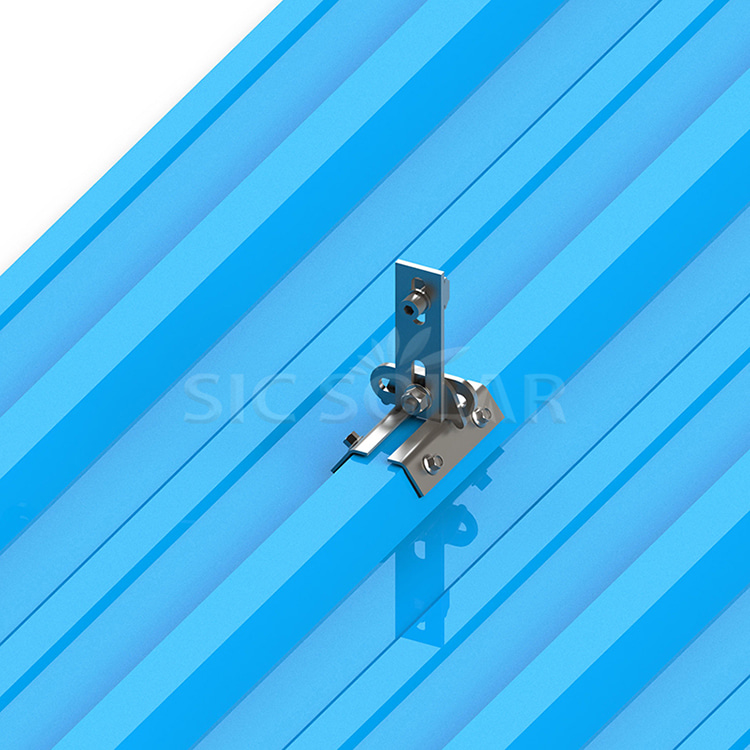

1️⃣ Position the clamp - Place the adjustable trapezoidal clamp on the ridge of the roof so that it aligns with the panel layout.

2️⃣ Adjust the width - Modify the clamp width to accommodate the trapezoidal shape of the roof.

3️⃣ Secure the clamp - Secure the clamp using self-tapping screws.

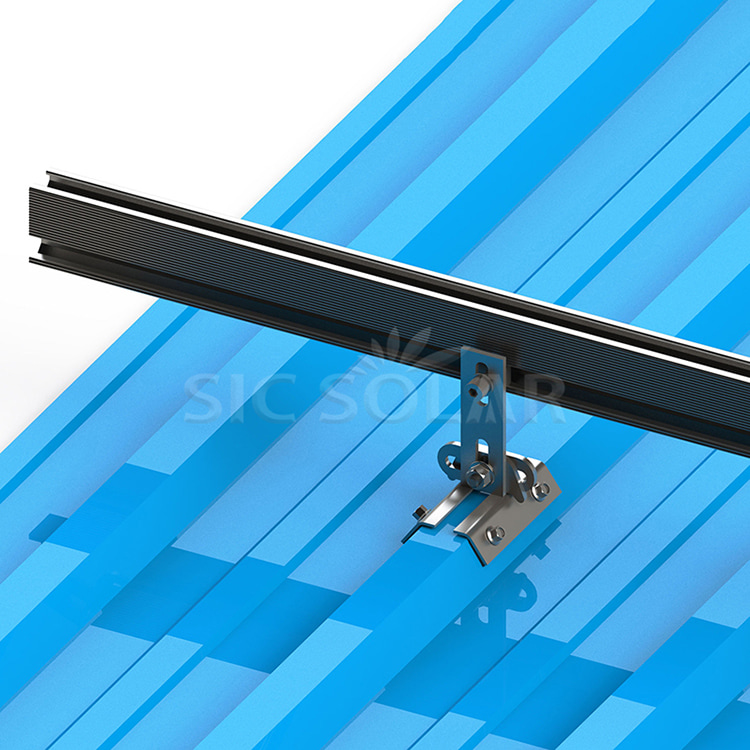

4️⃣ Install the solar mounting rail - Secure the aluminum mounting rail to the clamp using the rail bolts.

5️⃣ Install the solar panel - Secure the panel using the mid- and end-clamps for stability.

6️⃣ Final check - Double-check all fasteners to ensure a secure and durable installation.

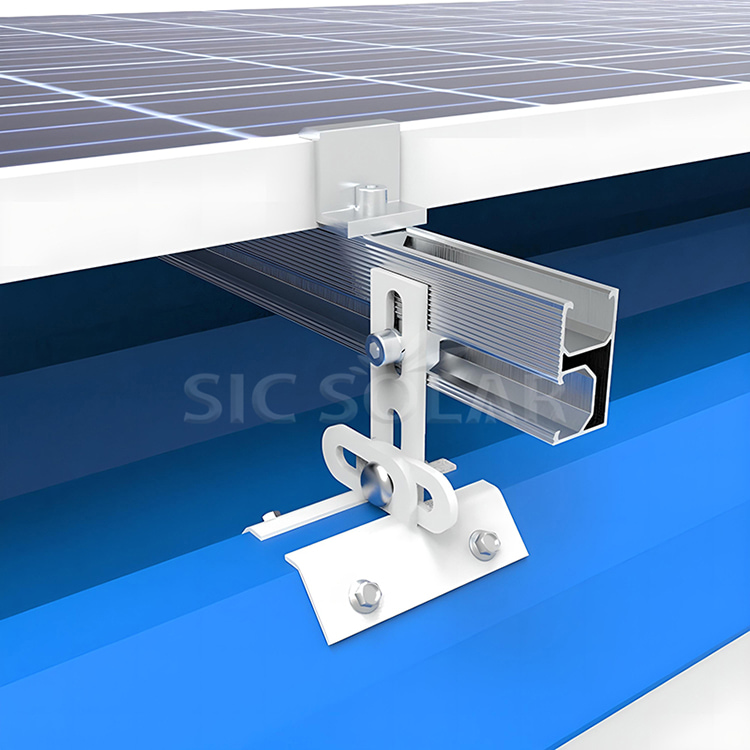

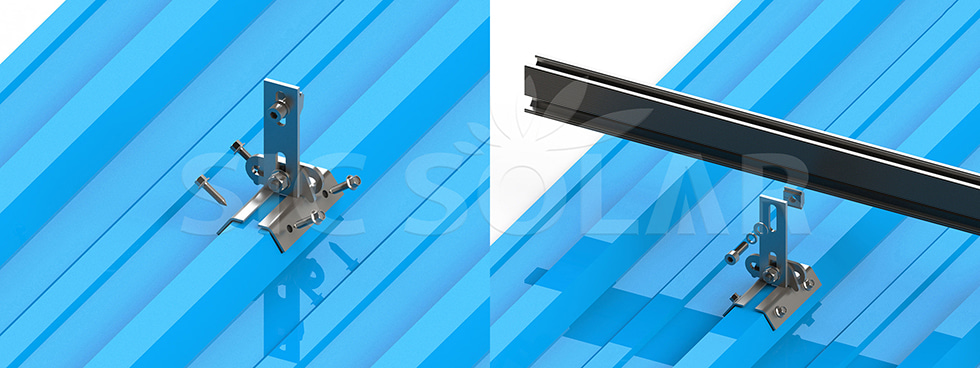

Application Scenario

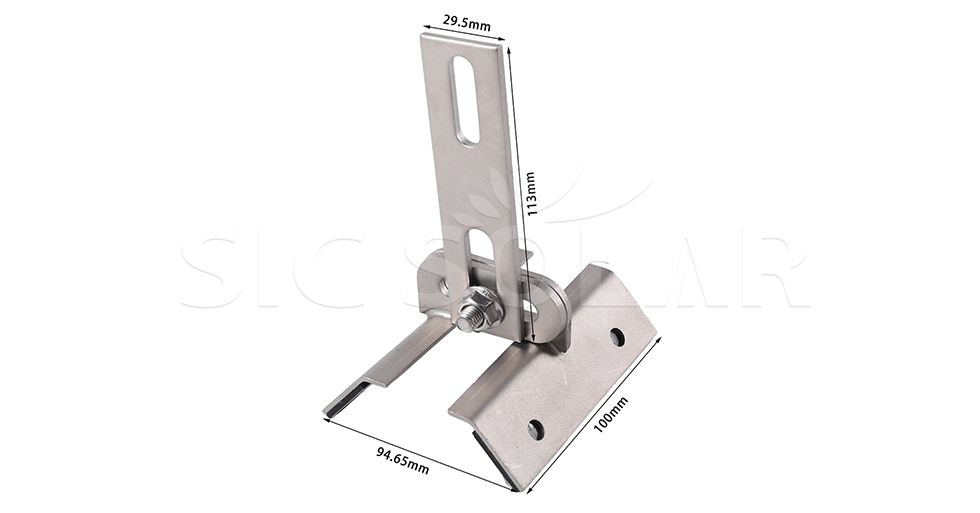

Details

Package

We use Adjustable Trapezoidal Tin Roof Solar Panel Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
