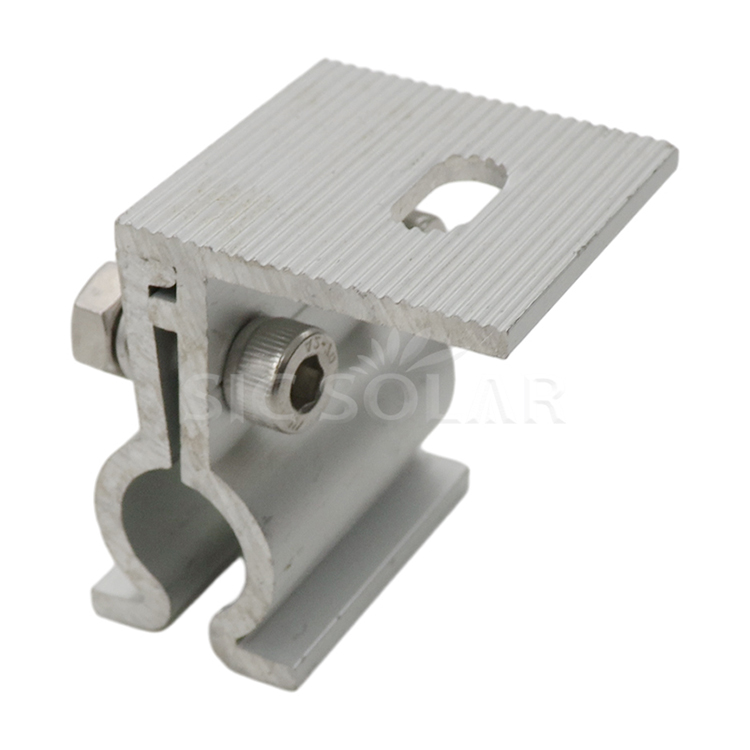

Solar Roof Mounting Clamps

Solar Roof Mounting Clamps provide a reliable and effective solution for mounting solar panels on a variety of roof types. Their compatibility with a variety of roof profiles and ease of installation make them an excellent choice for solar tin roof projects. High-quality clamps ensure the longevity and optimal performance of your solar system.

Analogous Products

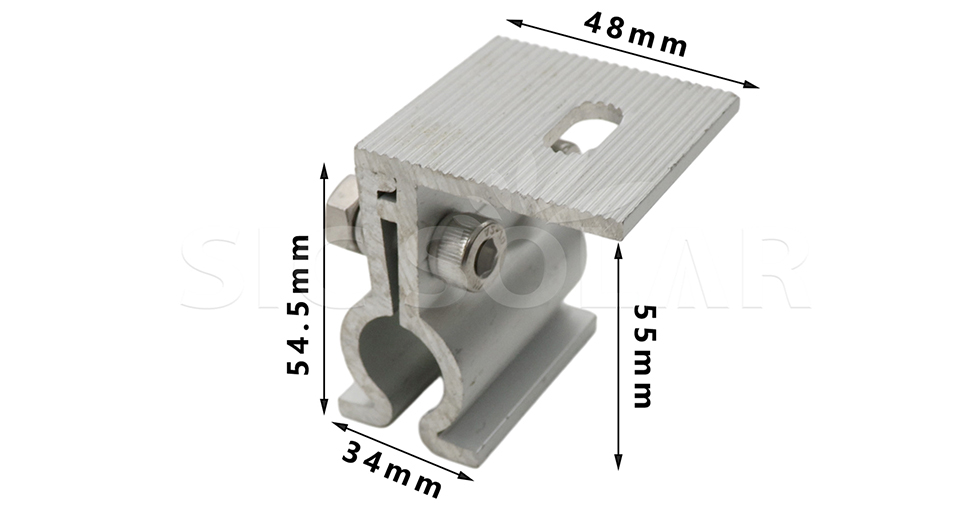

Technical Parameters

Item NO.： Westmont-TC-10

Installation Site： Roof

Material： Al6005-T5

Wind Load： <60M/S

Snow Load： <1.4KN/M²

Color： Natural or Customized

Warranty： 10 years and 25 years service time

Advantages

1. Strong and reliable: Designed to withstand strong wind and snow loads without deformation or loosening.
2. Save installation time: Pre-installed clamps reduce on-site workload and speed up overall project progress.
3. Universal compatibility: Suitable for most framed solar panels and roof styles, simplifying system design.
4. Improved safety: The non-slip characteristics and tight holding prevent failures of the system due to displacement of the panel.

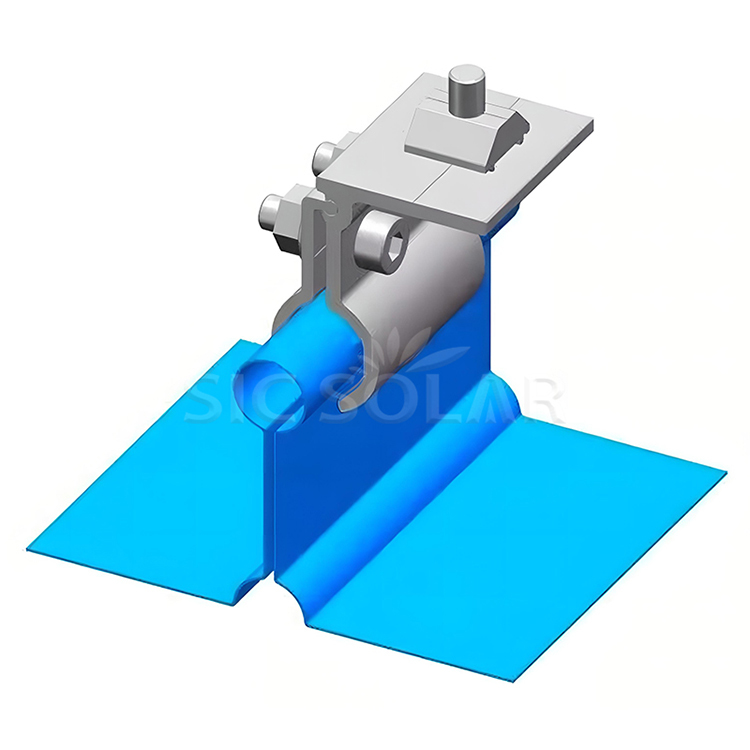

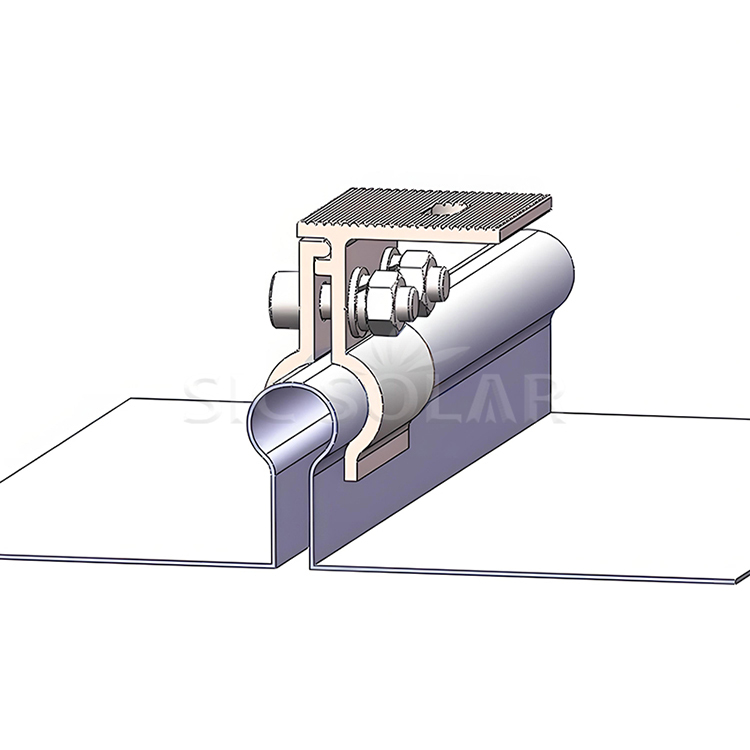

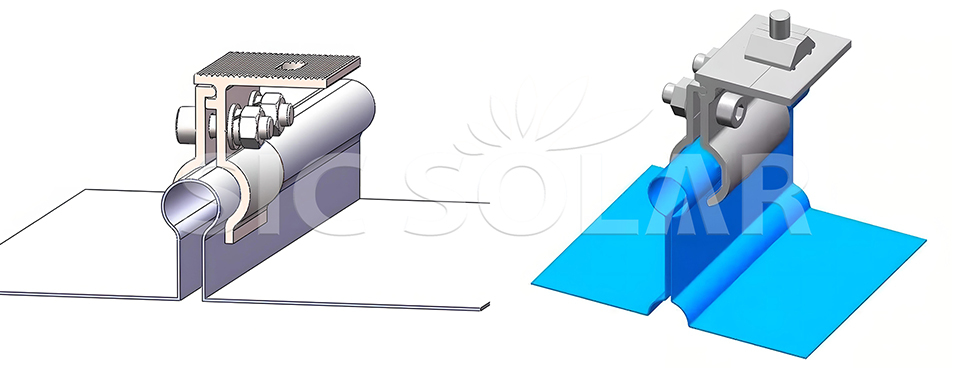

Installation Display

Installation Guide

1. Check the Roof Structure

   Verify the type of roof, its shape, and the thickness of the material.

   Also, check if it can hold a structural load for supporting the PV system.

2. Layout Clamp Positions

   Measure and mark precise locations for clamps according to module size and layout.

   Keep proper spacing as per manufacturer recommendations.

3. Mount Clamps on the Roof

   For metal roofs, fix the clamps to the seams or ribs of the roof.

   Use suitable gasket or sealant to stop entry of water.

4. Install the Solar Panels

   Fix the panels by using mid clamps between modules and end clamps at edges.

   Use torque wrench to tighten the bolts with the specified torque.

5. Check and Finalize

   Look at all clamps to make sure they are in right place and properly fastened.

   Verify module alignment and overall system stability.

Size Information

Package

We use Solar Roof Mounting Clamps standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
