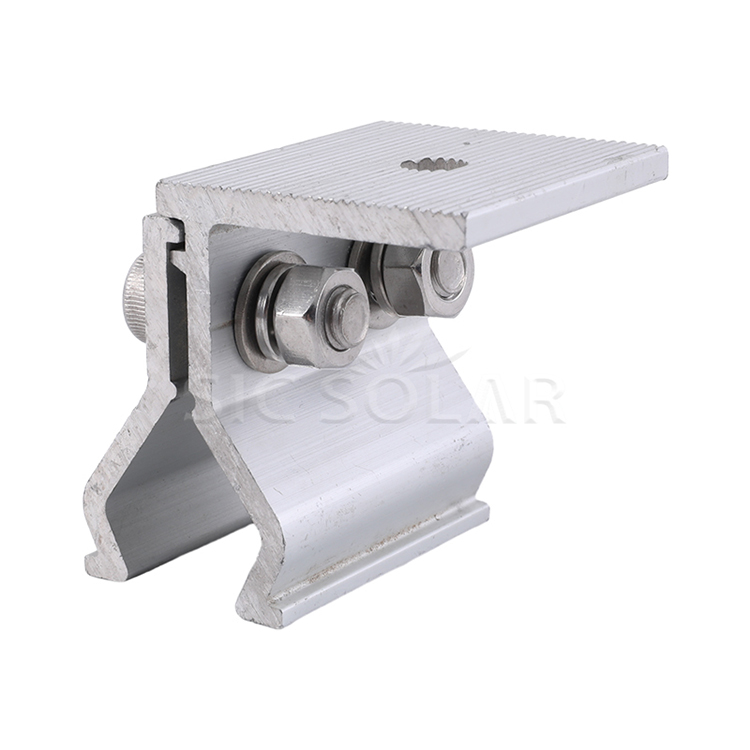

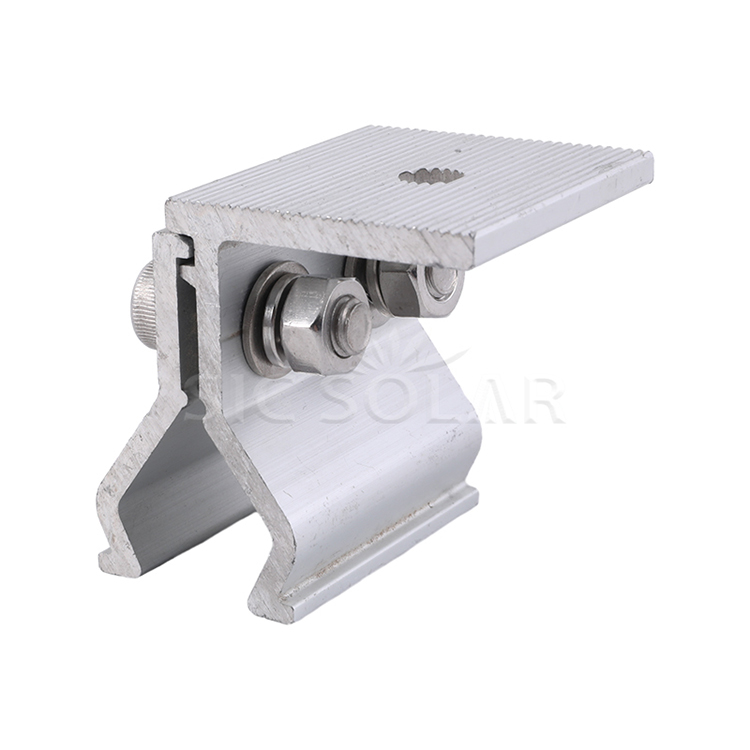

Solar Mounting Clamps Tin Roof

Solar Mounting Clamps Tin Roof offer a safe, strong and cheap way for fixing solar panels on tin roofs. Non-penetrating design combined with durable materials and easy installation. High-quality clamps can ensure the long-term performance and efficiency of the solar system.

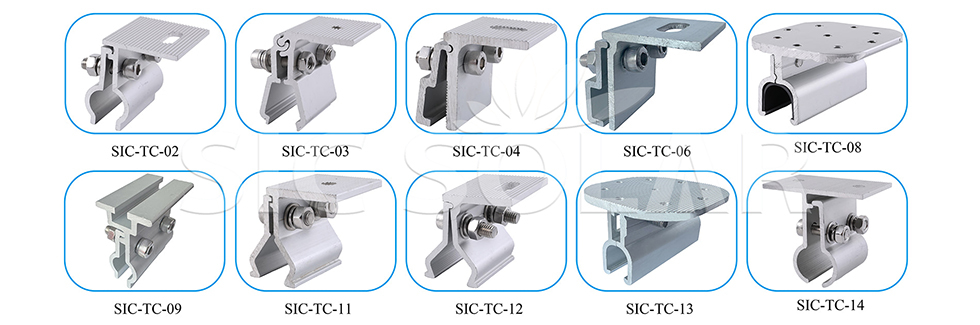

Analogous Products

Details

• Item NO.： Westmont-TC-11
• Installation Site： Roof
• Material： Al6005-T5
• Wind Load： <60M/S
• Snow Load： <1.4KN/M²
• Color： Natural or Customized
• Warranty： 10 years and 25 years service time

Key Features and Benefits

1. Non-penetrating design：Solar Mounting Clamps Tin Roof can be fixed to the standing seams or any other part of the iron roof without having to penetrate its panels, maintaining the same levels of waterproofness and structural integrity in the roof.
2. Quick installation：They come pre-assembled hence very easy and quick to install thus saving time and also labor costs.
3. Adjustability：Solar Mounting Clamps Tin Roof provide adjustable features which are preferable since they give an allowance to place the solar panels in a convenient position to maximum sunlight.
4. High load resistance：The system is designed to withstand high wind loads and snow loads, ensuring stability even in harsh climatic conditions.
5. Versatile：Suitable for residential and commercial solar installations on different types of metal roofs and certified to meet industry safety and performance standards.
6. Enable Certifications：Roof Rack Mounting Clamps all come with certifications.

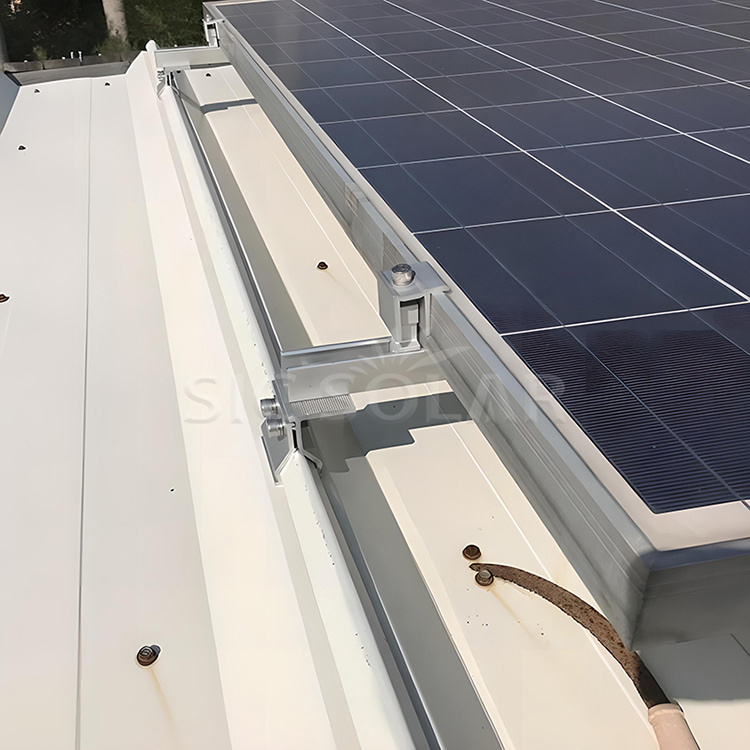

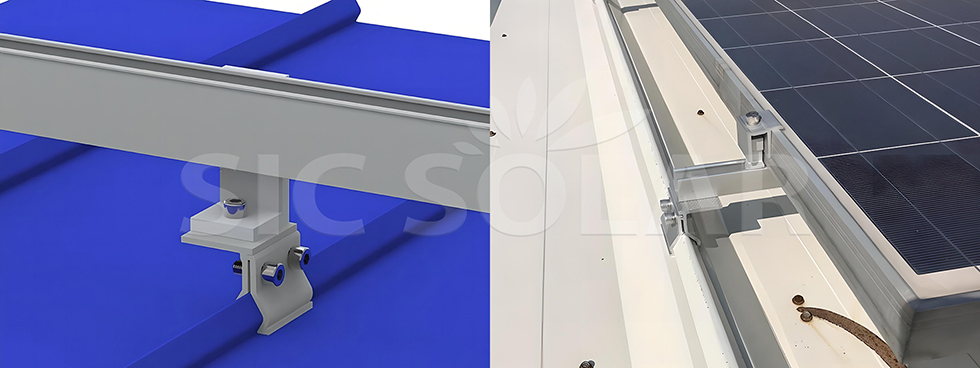

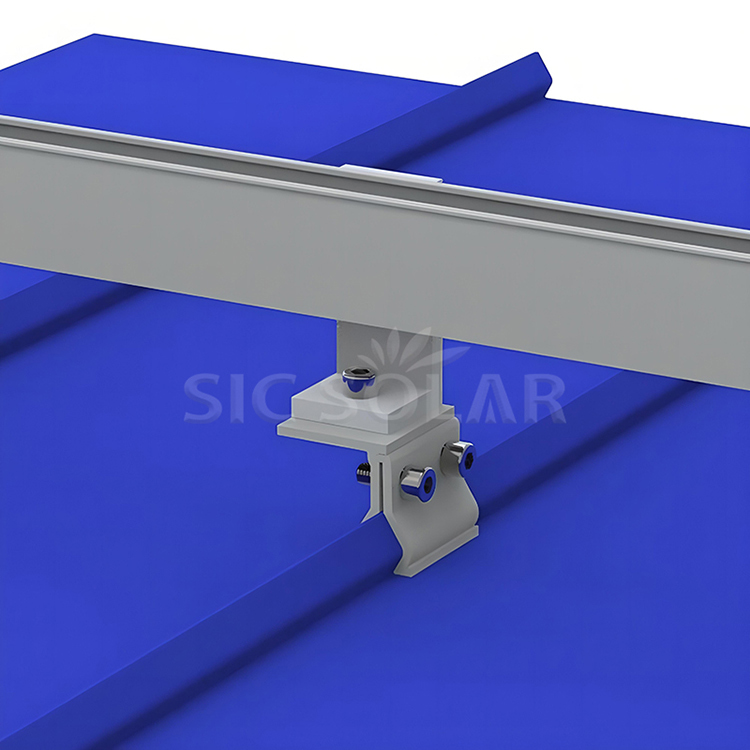

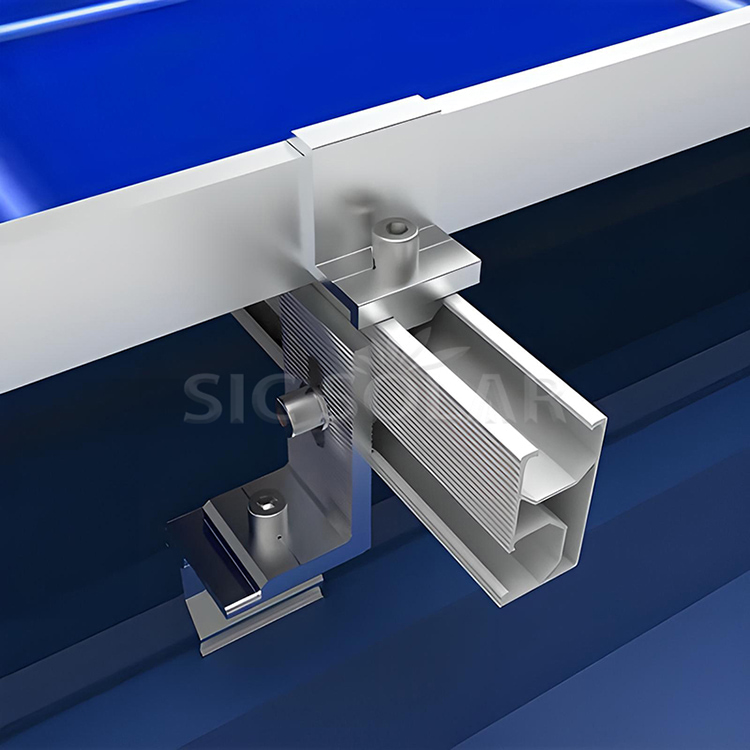

Installation Display

Installation Guide

1. Choose the clamp type:Choose according to the shape of your tin roof: standing seam (non-penetrating) or trapezoidal (penetrating).
2. Position the clamp:Aim the clamp at the ridge or seam, depending on the layout of the solar panels.
3. Fix and tighten:Tighten the clamp with a tool with the appropriate torque. For penetrating clamps, use a sealing screw.

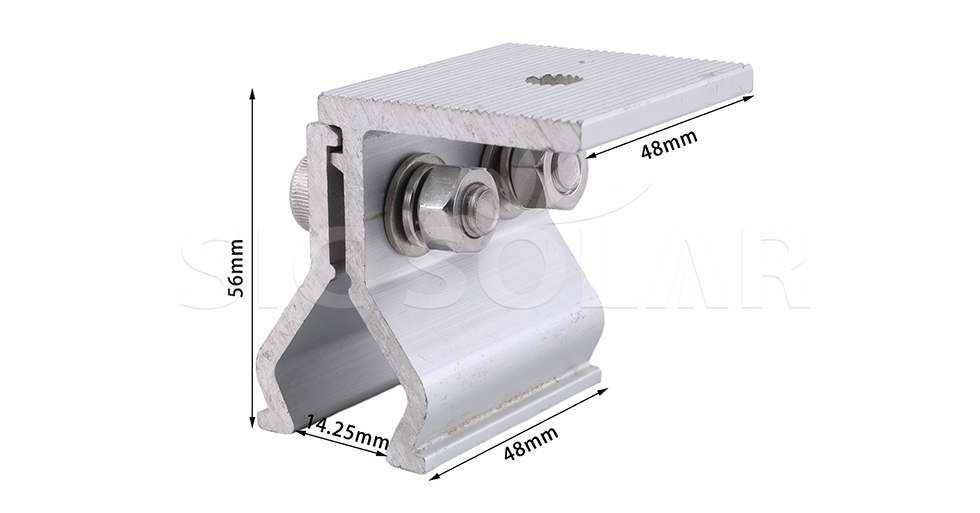

Size Information

Package

We use Solar Mounting Clamps Tin Roof standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
