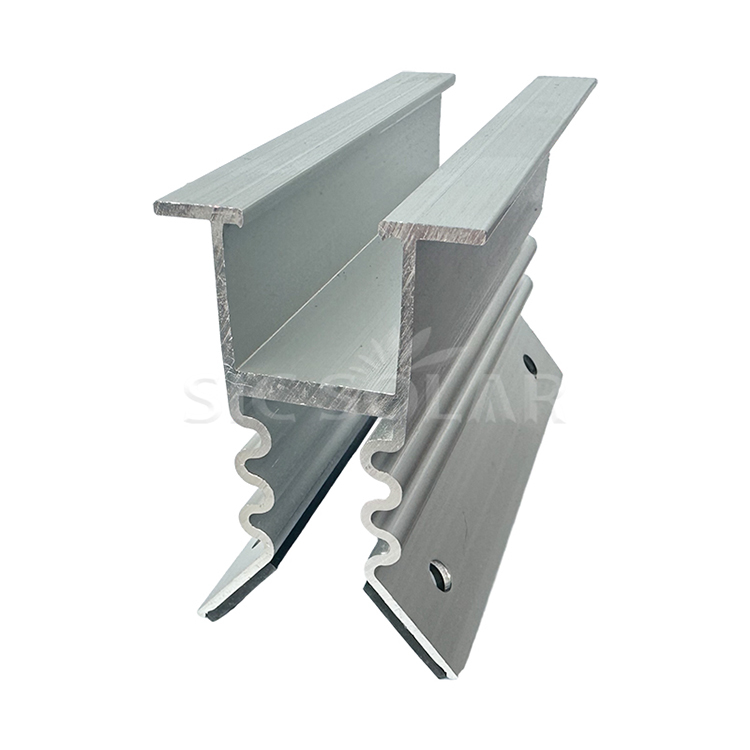

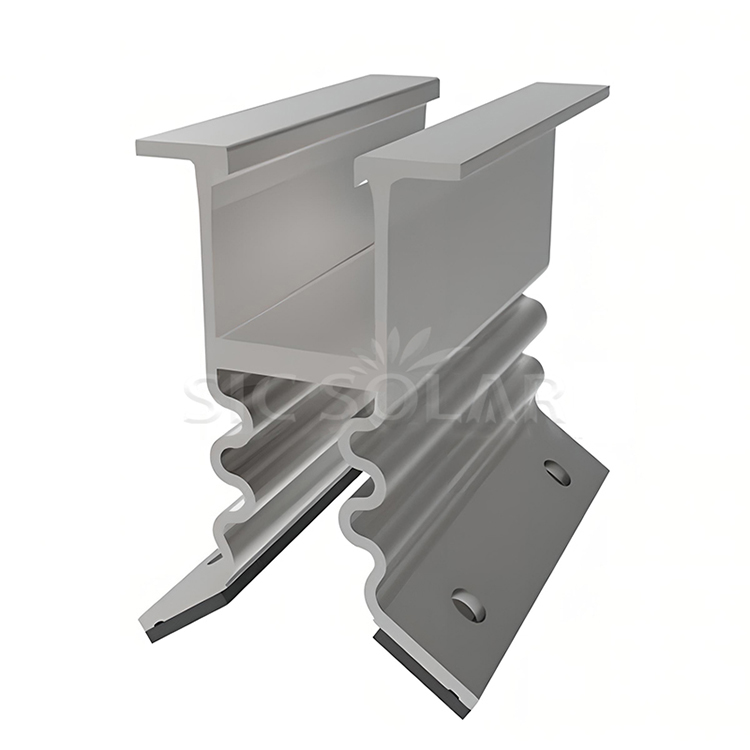

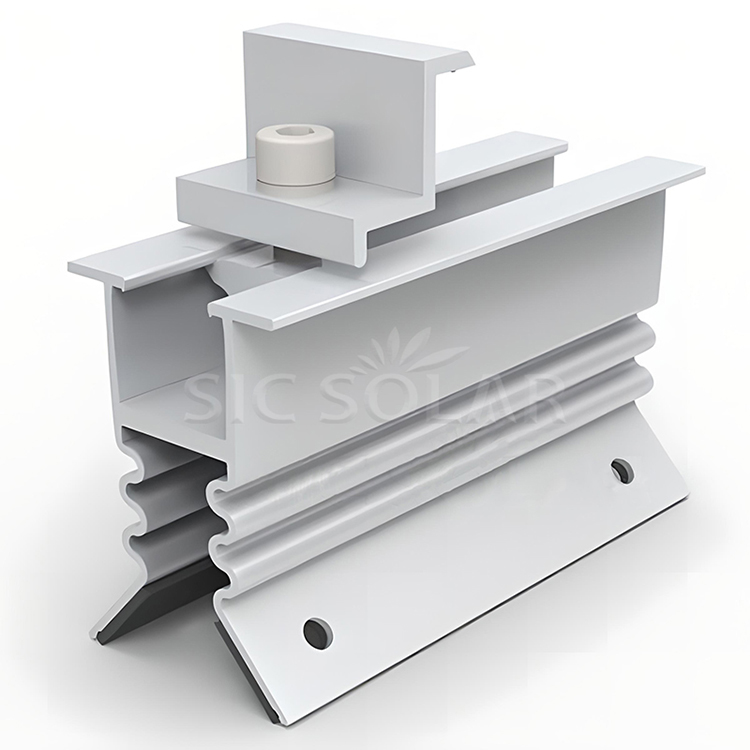

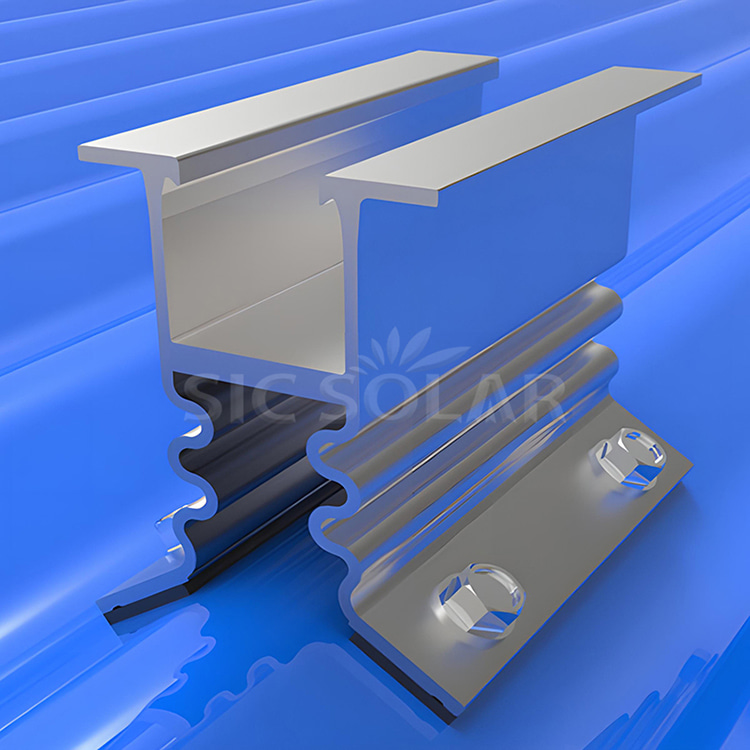

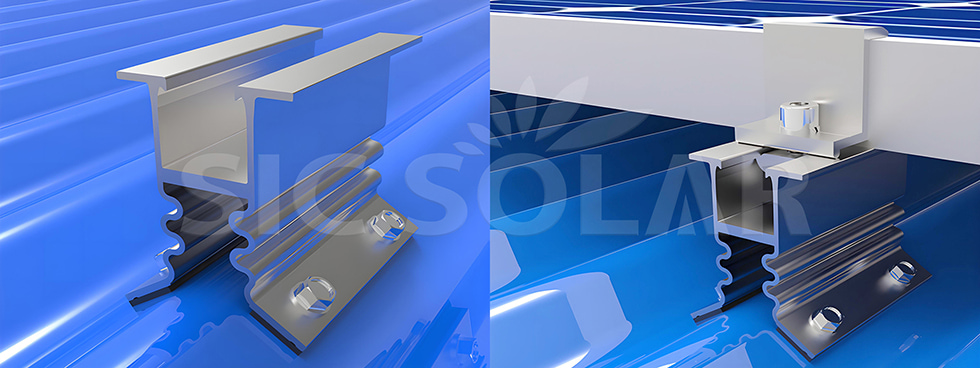

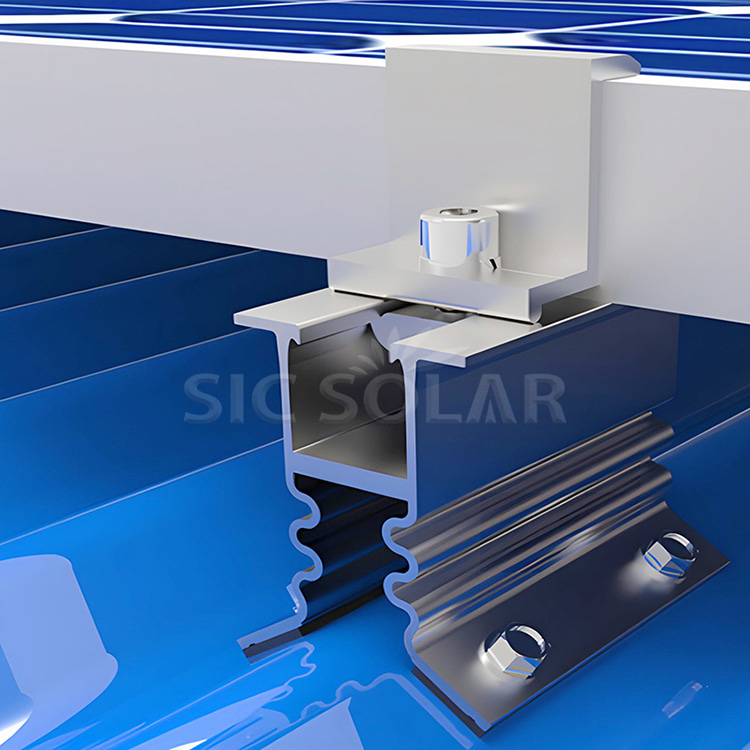

Solar Panel Clamp For Metal Roof are important components used to securely mount photovoltaic panels to metal roof structures without causing damage or, in some cases, requiring no drilling. These clamps provide a stable, durable, and weather-resistant solution for a variety of metal roof types.
|
Item NO. |
Installation Site |
Material |
Wind Load |
Snow Load |
Color |
Warranty |
|
Westmont-TC-20 |
Roof |
Al6005-T5 |
60M/S |
1.4KN/M² |
Natural or Customized |
10 years and 25 years service time |
1.Position the clamps– Align the clamps to the metal roof seam or ridge.
2.Secure with screws or set bolts – Use set screws or self-tapping screws with sealing washers, depending on the roof type.
3.Install the mounting rails – If using a rail-based system, secure the solar mounting rails to the clamps.
4.Secure the solar panel – Use the middle and end clamps to securely mount the solar panel.
5.Final check – Make sure all components are tight and aligned correctly.
1.High-quality materials – Corrosion-resistant aluminum for long-term durability.
2.Compatible with multiple roof types – Suitable for standing seam, trapezoidal and corrugated roofs.
3.Quick and secure installation – Pre-assembled components ensure quick installation.
4.Leakproof and weather-resistant – EPDM seal provides waterproof protection.
5.Certified and tested – Meets industry standards for safety and performance.
We use Solar Panel Clamp For Metal Roof standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
