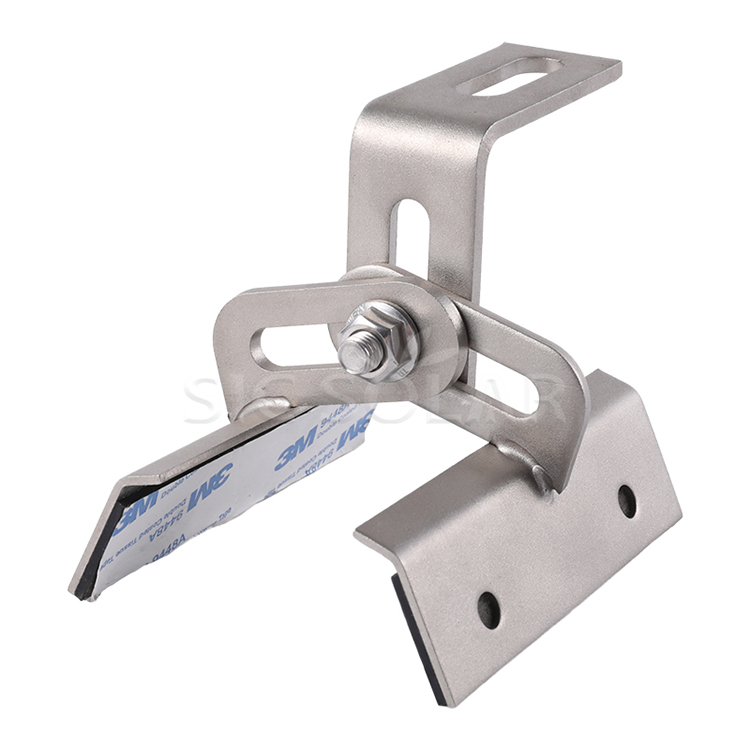

The Adjustable Solar Trapezoidal Clamp is engineered to work with trapezoidal metal roofs for solar panel racking installations. This clamp has a firm hold and does not allow any movements but without requiring drilling holes which means there won’t be any leaks and a very long-lasting mounting solution.
|
Item NO. |
Installation Site |
Material |
Wind Load |
Snow Load |
Color |
Warranty |
|
Westmont-MH-04 |
Trapezoidal Roof |
SUS304 |
<60M/S |
<1.4KN/M² |
Natural or Customized |
10 years and 25 years service time |
1. Adjustable Design - Flexible to fit various trapezoidal roof profiles.
2. Non-penetrating Installation – No roof damage, no leaks.

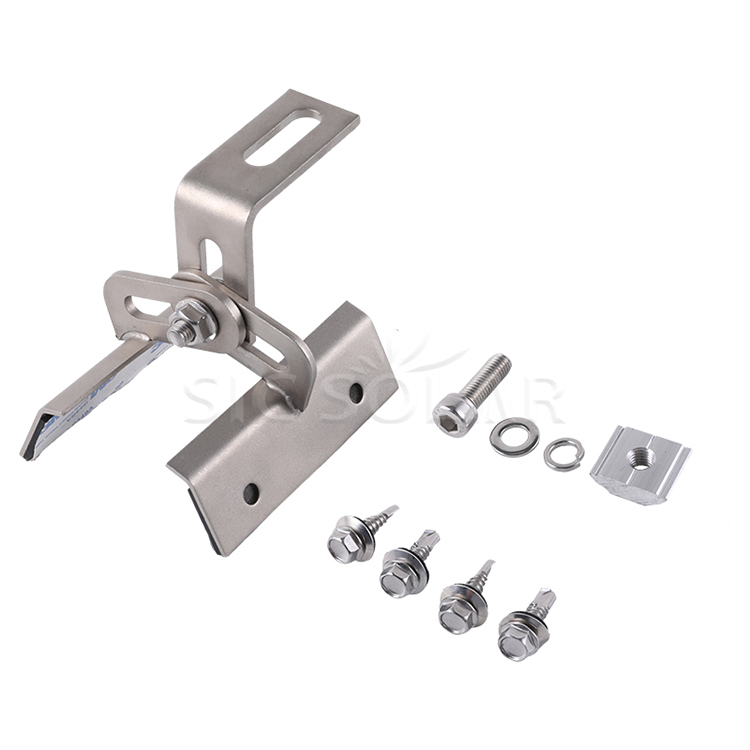

3. High-Strength Material – SUS304 With Stainless Steel Hardware for Corrosion Resistance.
4. Integrated EPDM Rubber Pads for Better Grip and Weatherproof Sealing.
5. Compatible with Solar Rails for Firm Solar System Connection with Aluminum Alloy Mounting Rails.

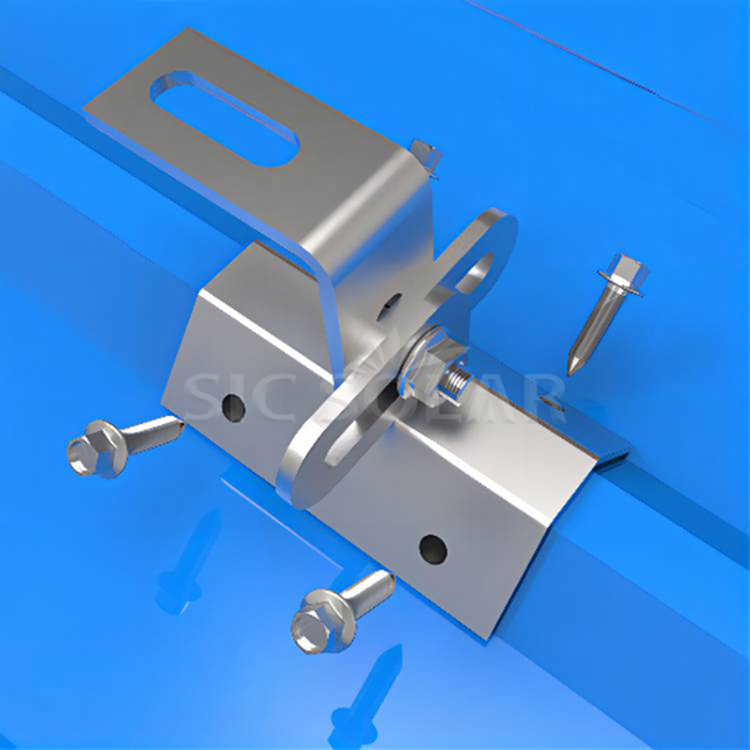

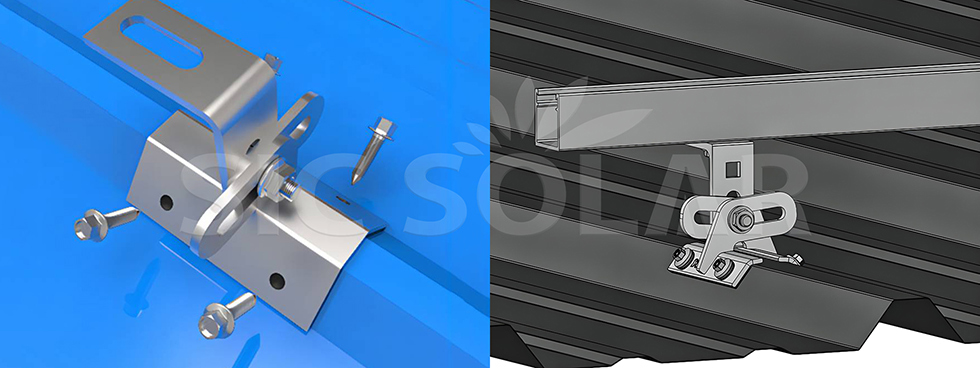

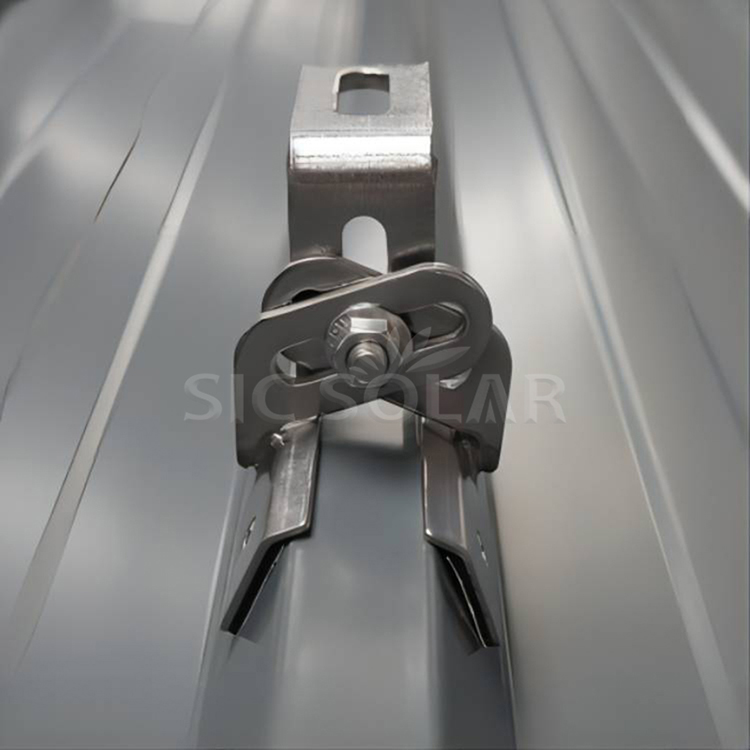

1️⃣ Place the clamp - Line up the trapezoidal clamp with the roof's top.
2️⃣ Change to fit - Use the easily changeable screws to match other trapezoidal shapes.
3️⃣ Fix the clamp - Use the stainless steel bolts to tightly fasten the clamp.

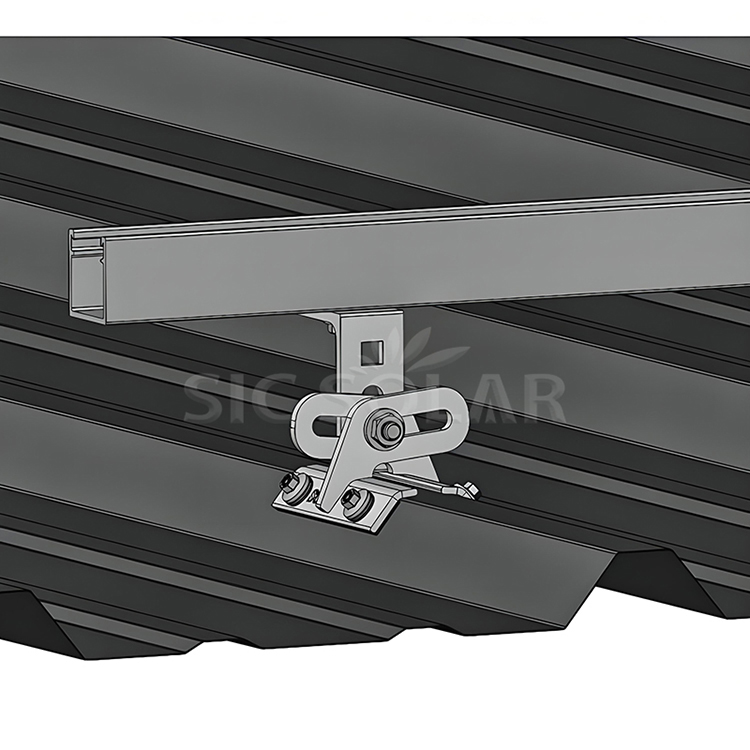

4️⃣ Put on the solar rail - Join the solar rail frame to the clamp.
5️⃣ Put on the solar panel - Attach the solar panel with th͏e middle and end clamps.
6️⃣ Last check - Make sure it is a safe link and right position.
We use Adjustable Solar Trapezoidal Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
