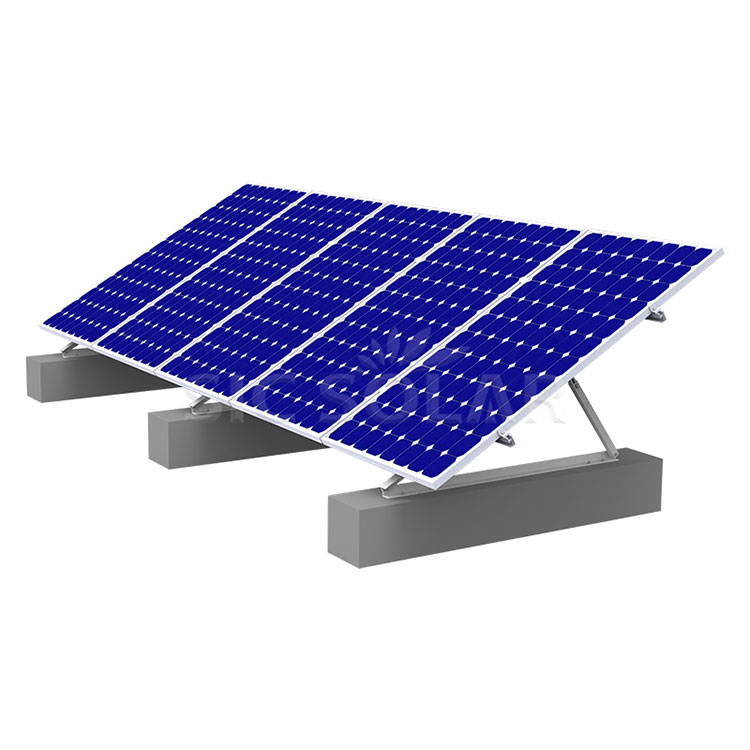

Adjustable Triangle Roof Mounting Bracket are crafted to offer a sturdy and flexible method for the installation of solar panels on flat roof surfaces.
adjustable angle mounting bracket
|
Item NO. |
Installation Site |
Material |
Wind Load |
Snow Load |
Color |
Warranty |
|
Westmont-FAT1 |
Roof or Ground |
AL6005-T5 |
<60M/S |
<1.4KN/M² |
Natural or Customized |
10 years and 25 years service time |
1）Adjustable Triangle Roof Mounting Bracket is versatile and compatible with a variety of solar panels, allowing it to scale from small to large-scale installations to meet different project needs.
2）Triangular mounting bracket fine-tunes the solar panel angle from 0 to 60 degrees, ensuring optimum sunlight absorption at different times of day and throughout the year.
3）The structure of these adjustable mounting brackets is designed for high pre-assembly, simplifying the installation process and reducing labor and time costs.
4）Due to its unique track extension characteristics, the Adjustable Triangle Roof Mounting Bracket facilitates precise installation without the need for on-site cutting.
5）Best AL6005-T5 Ensure 10 years warranty and 25 years service time.
adjustable solar panel mounting brackets
angle adjustment bracket
We use Adjustable Triangle Roof Mounting Bracket standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
